$MP | MSRP $141.00

IFMAR World Champion
2WD & 4WD Winning gear

Podium domination

For Stock motor (13.5-25.5T), please visit here.

Applications

Turn	Application	Lipo
3.5T (1S)	1/12th On-road Racing (1S)	1S
4.5T, 5T	Modified Class of 1/10th & 1/12th On-road Racing	2S
5.5T, 6T, 6.5T	Modified Class of 1/10th 4WD Off-road Racing	2S
7T, 7.5T, 8.5T	1/10th Drift, 2WD Off-road Racing	2S

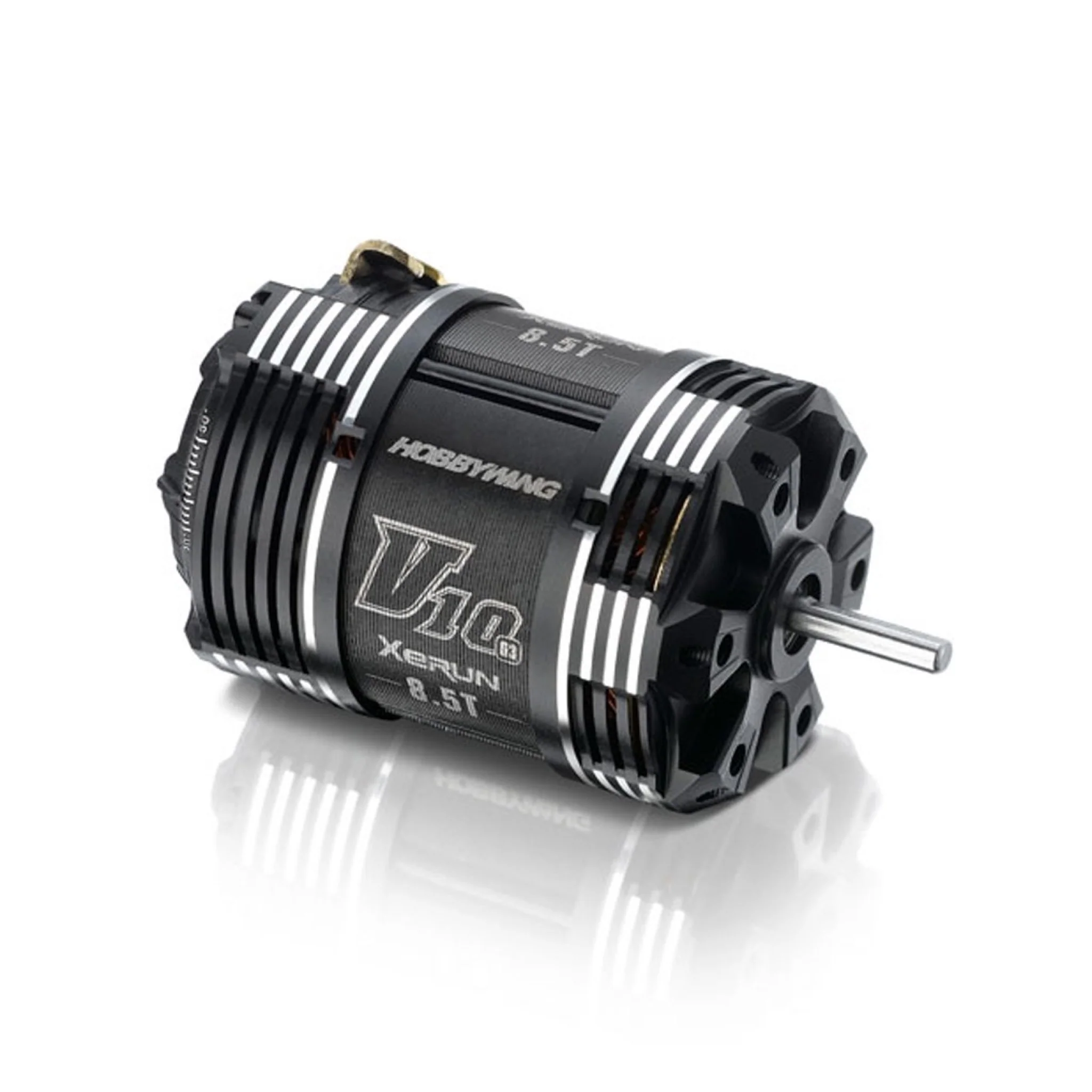

DESIGN matters. It’s a motor specially designed for Extremely High-Level Racing. The RMP of G3 Stock motor is significantly improved, the KV & torque are improved by 16% and 4% respectively, compared with the V10 G2 Stock motor.

Lightweight. The G3 Modified & Stock motors only weigh 161g & 132g respectively, the weights are reduced by 11% & 21% when compared with the previous generation G2 motors.
The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.
The mechanical timing can be adjusted finely and smoothly; the skid-proof lines on the rear end plate of the motor guarantee the stability of the timing after adjustment. For G3 Stock motors (10.5T~25.5T), the timing is adjustable from 30 degrees to 60 degrees; for Modified motors (3.5T~8.5T), the timing is adjustable from 20 degrees to 50 degrees.
The motor case is designed to be easy to dismantle for maintenance purposes and for the replacement of common wearing parts.

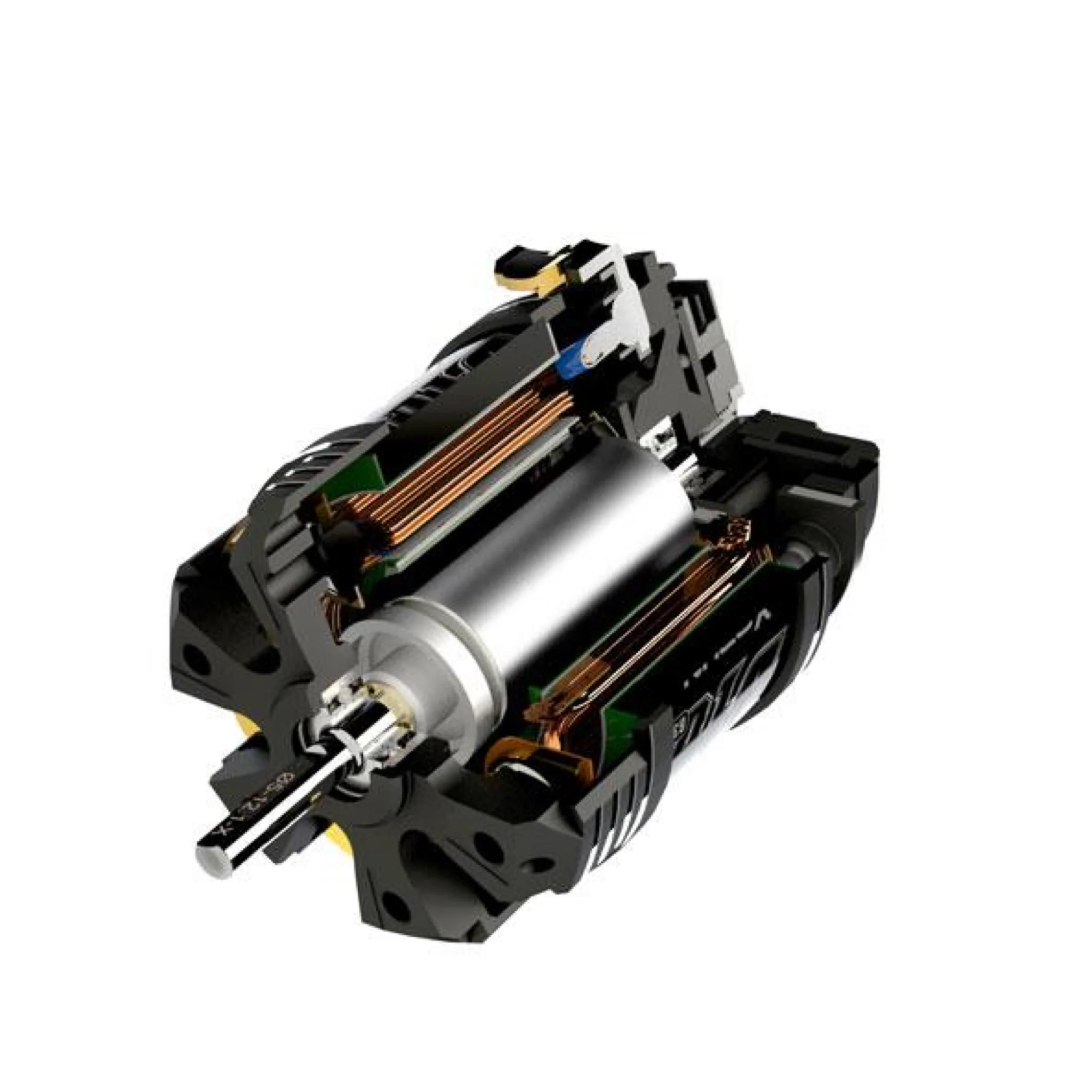

The special shell design which makes the stator core expose to the air maximizes cooling. Big holes on the end plates of 10.5T~21.5T motors further help reduce heat; small holes on the end plates of 5.5T~8.5T motors effectively keep sand or dirt from getting inside and damaging the motor(s).
The use of high-performance stator core, heat(200℃)-resistant wire, heat(200℃)-resistant rotor with strong structure, imported high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding performance and super durability.
It’s compliant with IFMAR, ROAR, EFRA, BRCA rules, and certificated by RoHS, CE, FCC

Modified motors (3.5T-10.5T)

2 POLE Super High-Efficiency brushless motor
Diameter/Length (mm): Ø=35.9mm L=51.2mm
Shaft Diameter/ Length (mm): Ø=3.17mm L=13.3mm

p/n	T	kv	LiPo	(Ω)	No-load Current (A)	Max. Output Power (W)	Current @Max. Output Power (A)	Stock Rotor	Weight (g)
30401106	3.5	9450	1S	0.0018	7.7	462	126	Φ5-12.1	163
30401102	4.5	7340	2S	0.0029	6.7	457	122	Φ5-12.3	163
30401116	5	6500	2S	0.0035	5.5	443	118	Φ5-12.3	159
30401107	5.5	5900	2S	0.0041	5	426	115	Φ5-12.5	163
30401117	6	5500	2S	0.0048	4.5	415	113	Φ5-12.5	162
30401109	6.5	5120	2S	0.0056	3.9	402	113	Φ5-12.5	164
30401123	6.5 OnRoad	6300	2S		7.4	428	107	5-12.5	150
30401118	7	4800	2S	0.0065	3.5	364	106	Φ5-12.5	161
30401110	7.5	4420	2S	0.0074	3.3	346	100	Φ5-12.5	161
30401119	8	4200	2S	0.0089	3.0	320	88	Φ5-12.5	160
30401111	8.5	3970	2S	0.0097	2.8	298	84	Φ5-12.5	163

Cautions:

To avoid short circuits, ensure that all wires and joints must be well insulated before connecting the motor to related devices.

Never allow this product or other electronic components to come in contact with water, oil, fuel or other electro-conductive liquids. If it happens, stop the use of the product immediately and let it dry carefully.
Read through the manuals of all power devices and chassis and ensure the power configuration is rational before using this unit.
Never apply full throttle if the pinion gear is not mounted on, because (under the no-load circumstances) high RPMs may get the motor damaged.
Connect all the devices carefully, you may not control the vehicle properly or encounter some unpredictable issues like damaged components if any poor connection exists.
To avoid possible damage (result from overheat) to the product, please control the soldering time within 5 seconds when soldering the motor wires (a soldering iron with the power of at least 60W is needed).
Stop immediate usage once the casing of the motor exceeds 100℃/212℉ as high temperature may damage the motor and cause the rotor to demagnetize. Hobbywing recommends activating the “Motor Thermal Protection” (of the ESC).

Recommended FDR

See User's manual for recommended FDR. Incorrect FDR will damage your ESC and motor.

Download

User's Manual

COMBO available

XR10 PRO ESC + V10 G3 motor Combo
XR10 Stock Spec 2S ESC + V10 G3 moto Combo

Best match with...

XR10 PRO ESC
XR10 Stock SPEC ESC (1S & 2S)
Sensor wires - Factory edition
Rotors
Ball Bearing/ Endbell Set for V10 G3 motors
Motor Shell & Screws

IFMAR World Champion
2WD & 4WD Winning gear

Applications

Modified motors (3.5T-10.5T)

Recommended FDR

Download

COMBO available

Best match with...

Related products

See All HOBBYWING Motors

IFMAR World Champion2WD & 4WD Winning gear

Applications

Modified motors (3.5T-10.5T)

Recommended FDR

Download

COMBO available

Best match with...

Related products

See All HOBBYWING Motors

IFMAR World Champion
2WD & 4WD Winning gear

CARS & TRUCKS

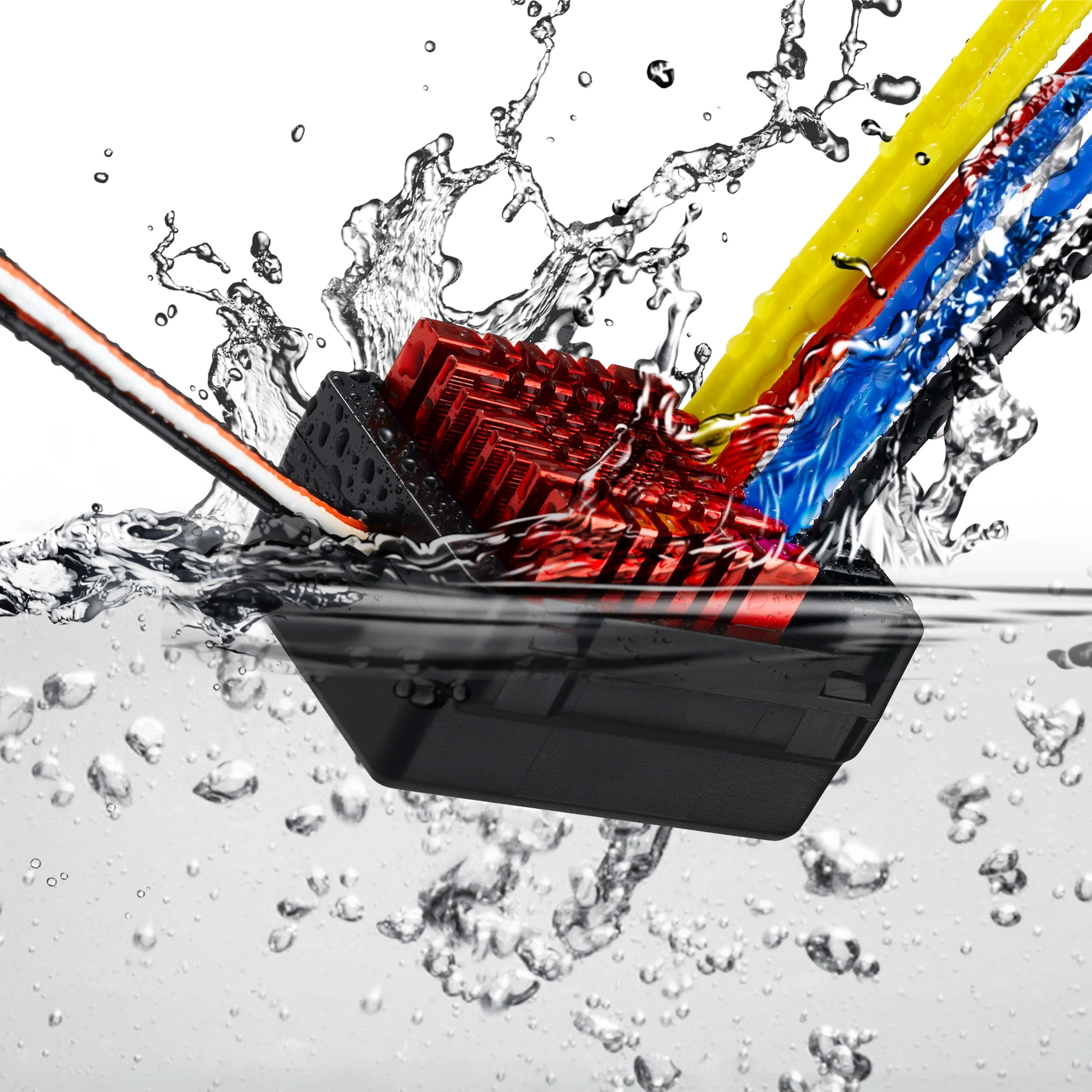

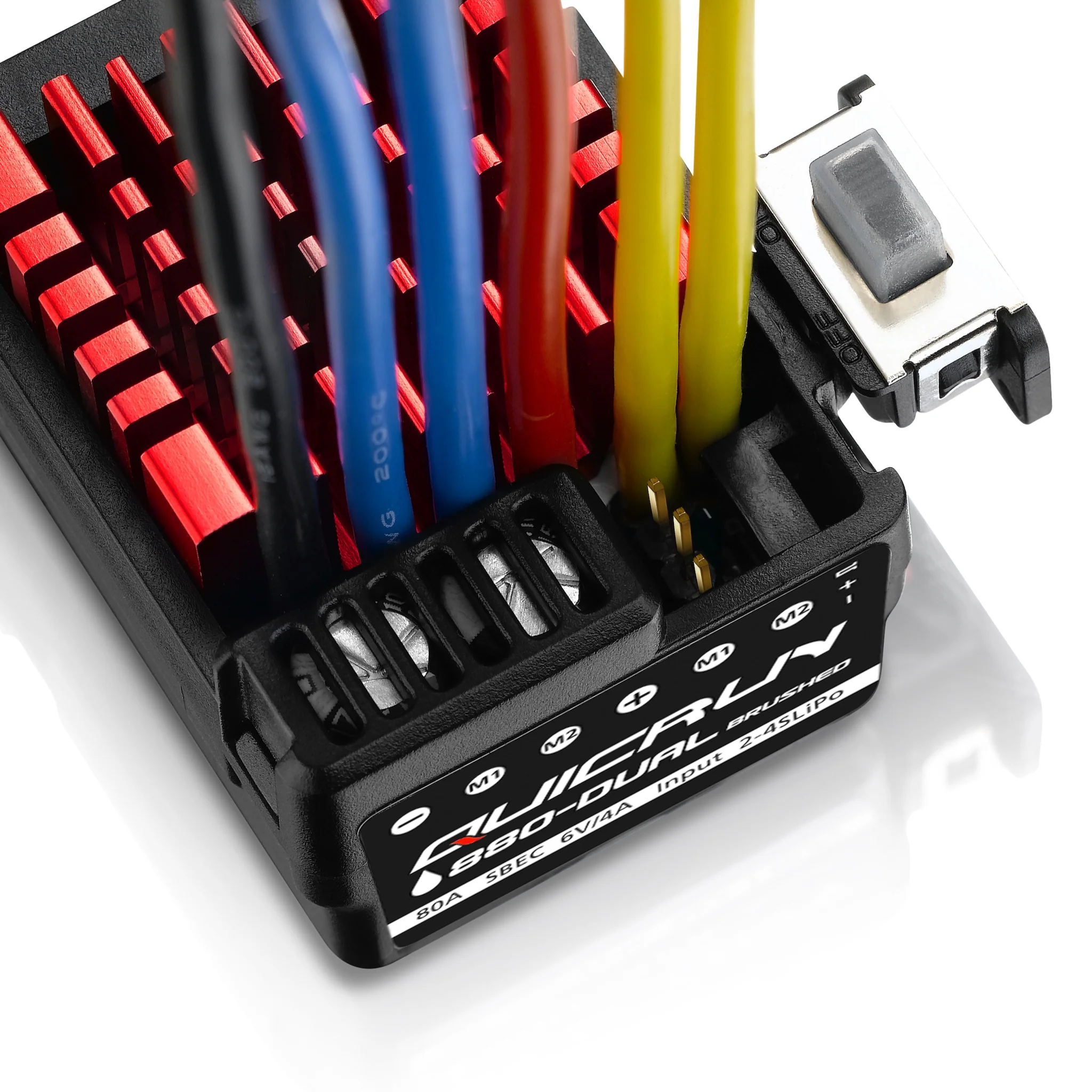

QUICRUN WP 880 Dual Brushed ESC (2-4S)

XERUN V10 Motor G3 - Modified (3.5-10.5T)

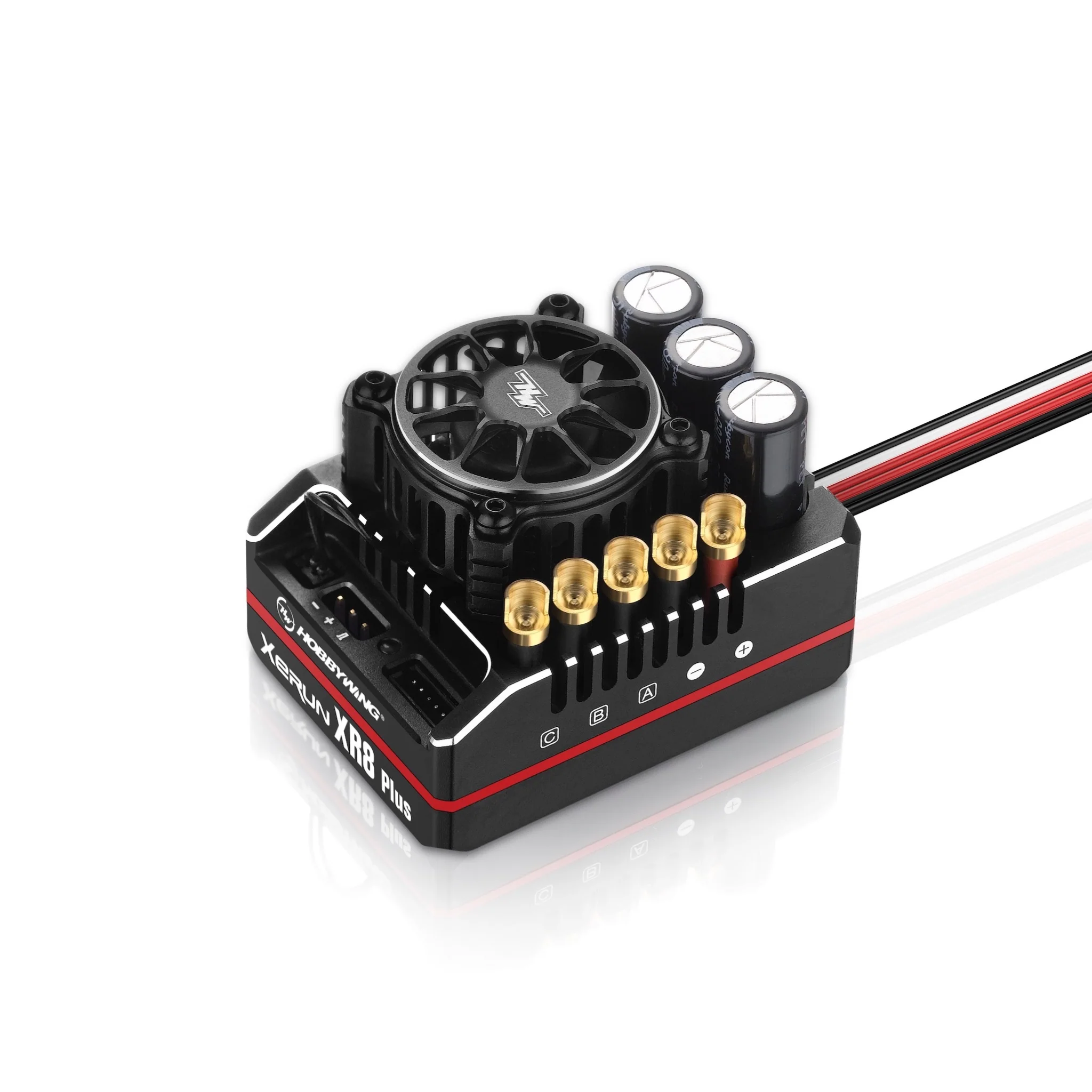

XR8 Plus G2S ESC (2-6S)

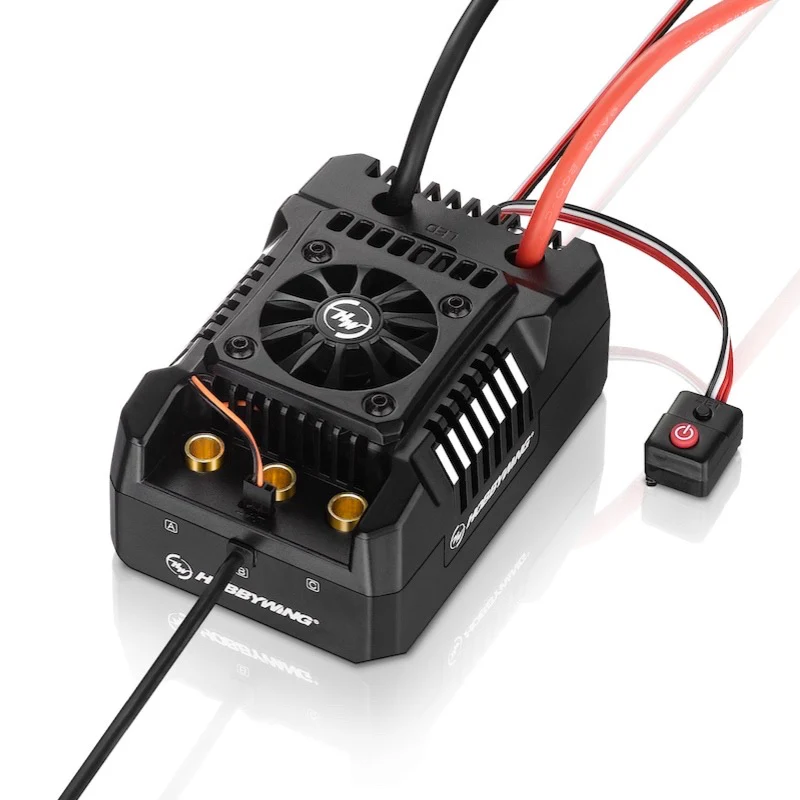

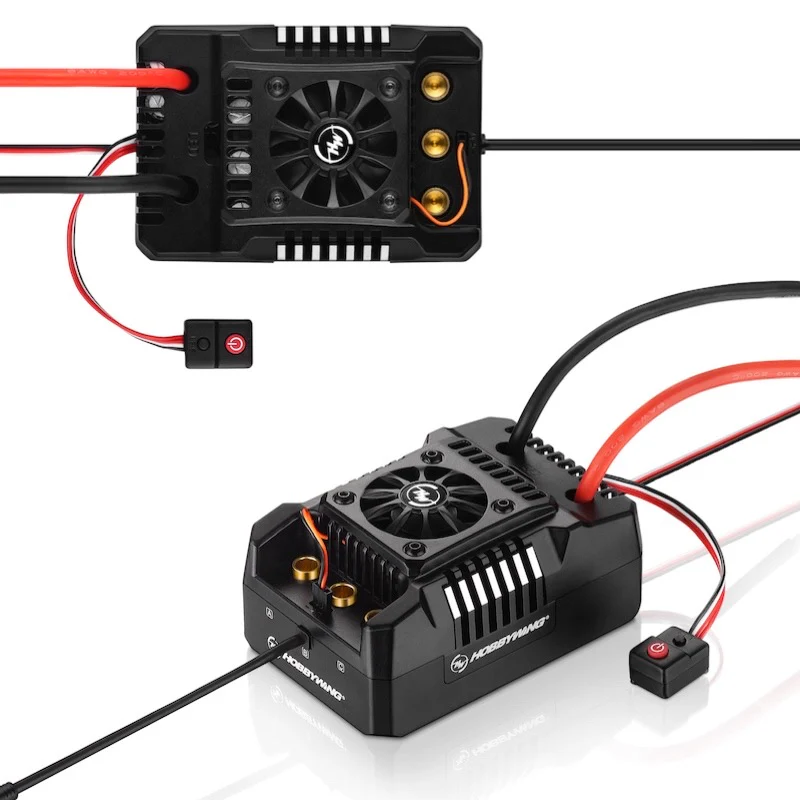

EZRUN MAX4 ESC (HV 6-12S)

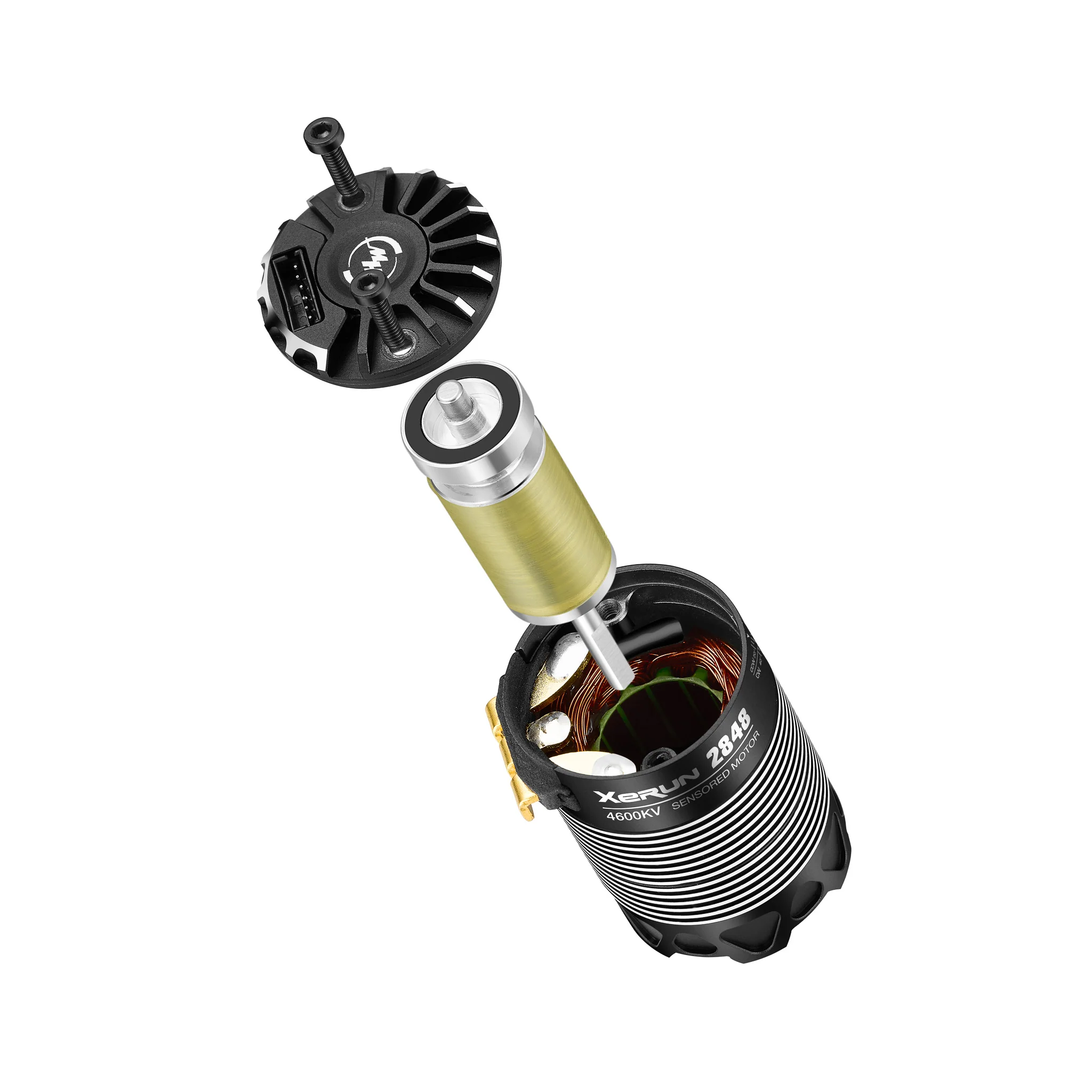

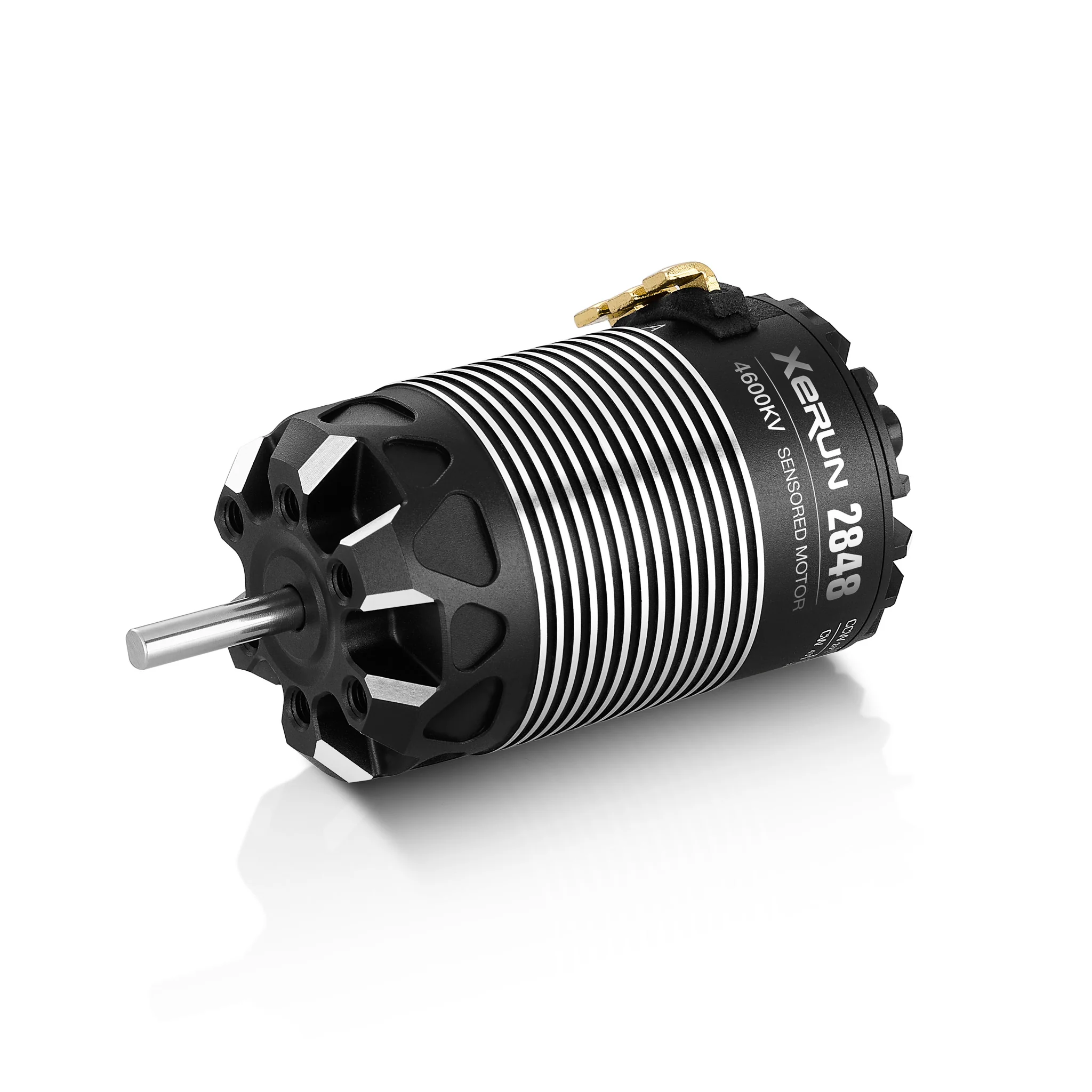

XeRun 2848 motor

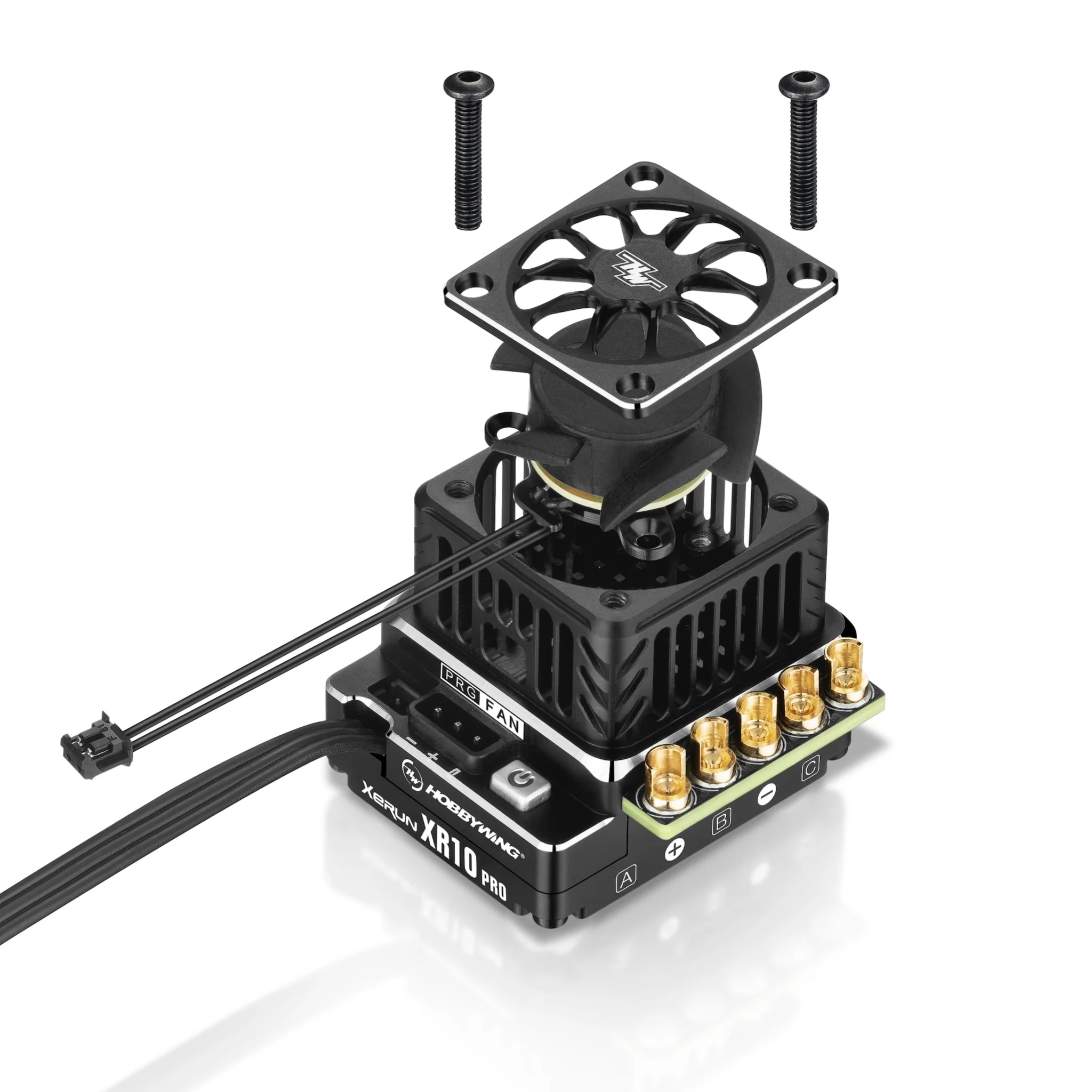

XR10 PRO G2S ESC
