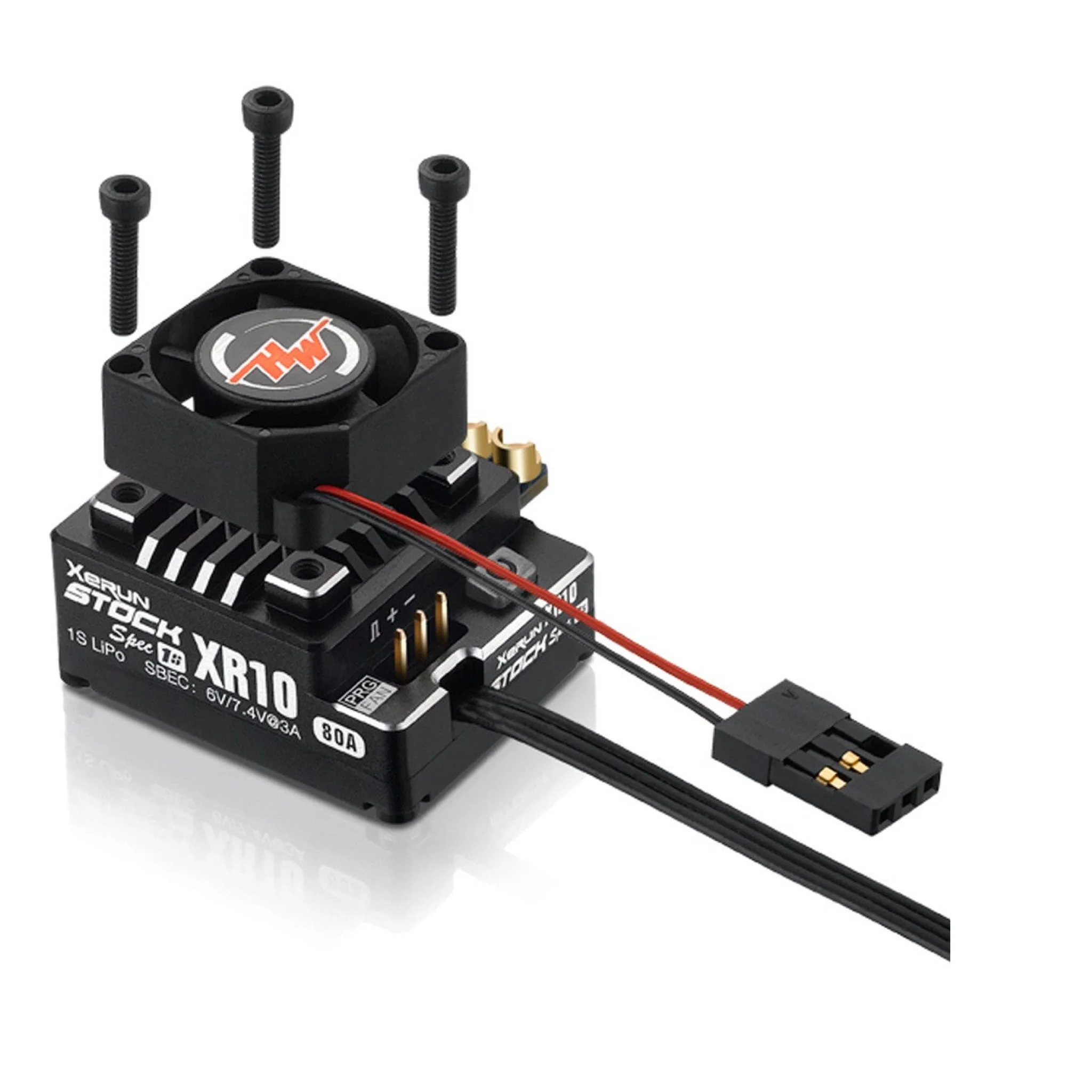

XR10 Stock Spec ESC (1S)
FREE SHIPPING available
MSRP $200
1S Zero timing
North America Edition
World's smallest & compact ESC.
'23.5 g'
Dedicated designed for Stock Spec Races
ROAR approved for ROAR SPEC racing!
Bottomline
- Zero timing firmware for ROAR SPORTMAN races and other fair races.
- World's Smallest footprint & Lightweight ESC ever. "23.5g"
- Programming/Upgrading/ Data Reading Wirelessly: Integrated Data logger can record the maximum temperature of ESC and motor as well as the maximum RPM.
- Built-in boost BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V for usage with high voltage servos.
- Separate PRG/FAN port is able to power an external fan for maximize cooling performance or connect a LCD program box or WiFi module to the ESC.
- With HOBBYWING OTA programmer, users are able to program parameters, upgrade firmware and check relevant data during the event using either the iphone or Android devices.
- New brakes and throttle functions: 100 levels of brag brake, 50 levels of initial brake force, 9 levels of maximum brake force, 20 levels of brake rate, and 30 levels of throttle rate. • Adjustable brake mode, PWM and brake frequencies and for different competitions and control feel.
- Adjustable Turbo Timing & Boost Timing for different applications.
- Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail safe (throttle signal loss protection).
- Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real time.
| XR10 Stock Spec 1S ESC | Xerun STOCK Spec ESC | |
| 30112751 | 30112400 | |
| Current | Continuous: 80A Burst: 380A |
Continuous: 100A
Burst: 600A
|
| Battery | 3-4S NiMH 1S LiPo |
4-9 cells NiMH/NiCd 2-3S* LiPo |
| Built-in BEC | 6V/7.4V Adjustable, Continuous Current of 3A (Switch-mode) |
6V@3A (linear mode) |
| Motor Supported | Sensored and sensorless brushless motors | |
| Suitable Motor | 3650 Motors T≥10.5T |
3650 Motors
2S LiPo: 1/10 Touring Cars≥4.5T, 1/10th Buggies≥6.5T 3S LiPo: 1/10 Touring Cars≥6.5T, 1/10th Buggies≥10.5T |
| Application | STOCK class of 1/12 - /1/10 | 1/10,1/12 all competitions 1/10,1/8 rock crawler |
| Cooling Fan | 5V - 7.4V (20x20x8mm) |
5V - 8.4V (25x25x10mm) |
| Wires | 14AWG-200mm | 12AWG-200mm |
| Size | 31.6 x 25.8 x 16.2mm | 37.5x31.0x32.0mm |
| Weight** | 23.5g** | 32.6g |
| * For 7-9 cells NiMH/NiCd or 3S LiPo, the standard cooling fan must be changed to 12V high voltage fan. ** Weight is w/o wires, cooling fan | ||
Download
For detail information, please read the user manual.
User ManualHighly Recommended Accessories:
-
OTA programmer
- Best paired with Xerun V10 brushless motor
- Professional LCD Program Box
- Cooling Fan (Normal Voltage)
- High Voltage Cooling Fan for Upgrade
- Super Capacitors Module for Car ESC
