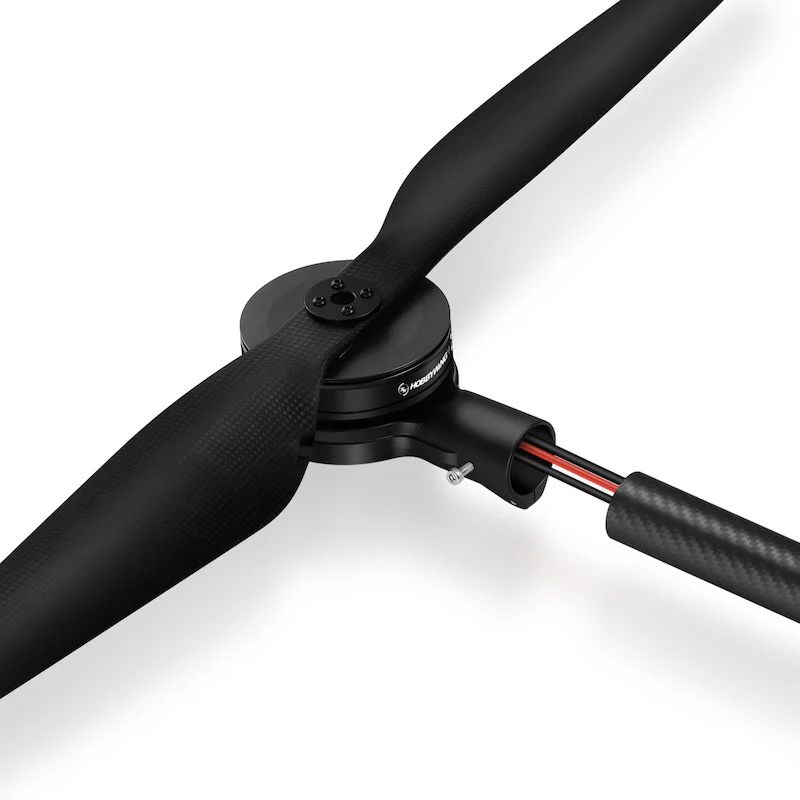

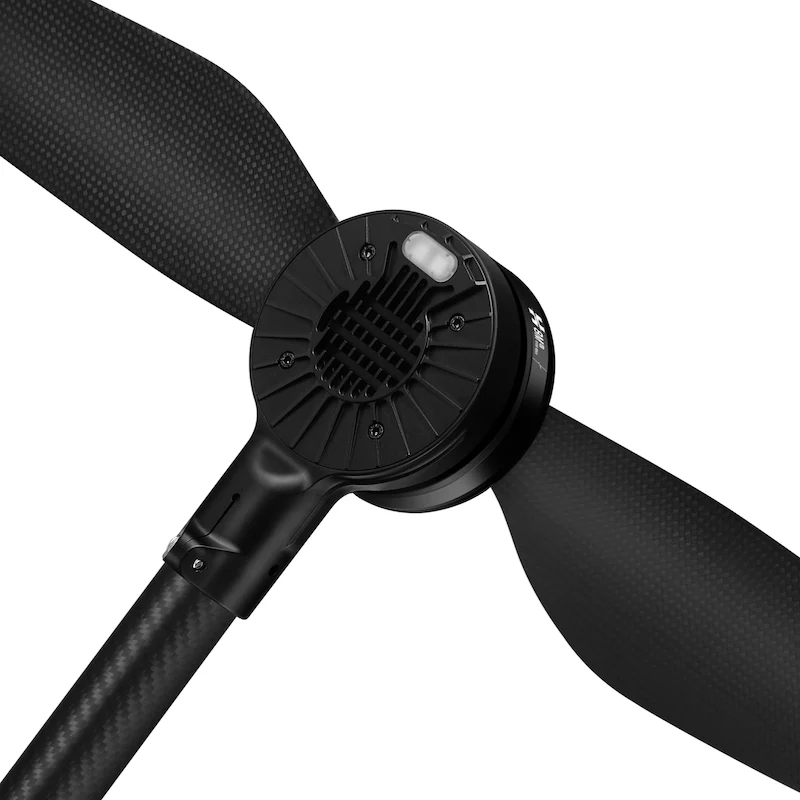

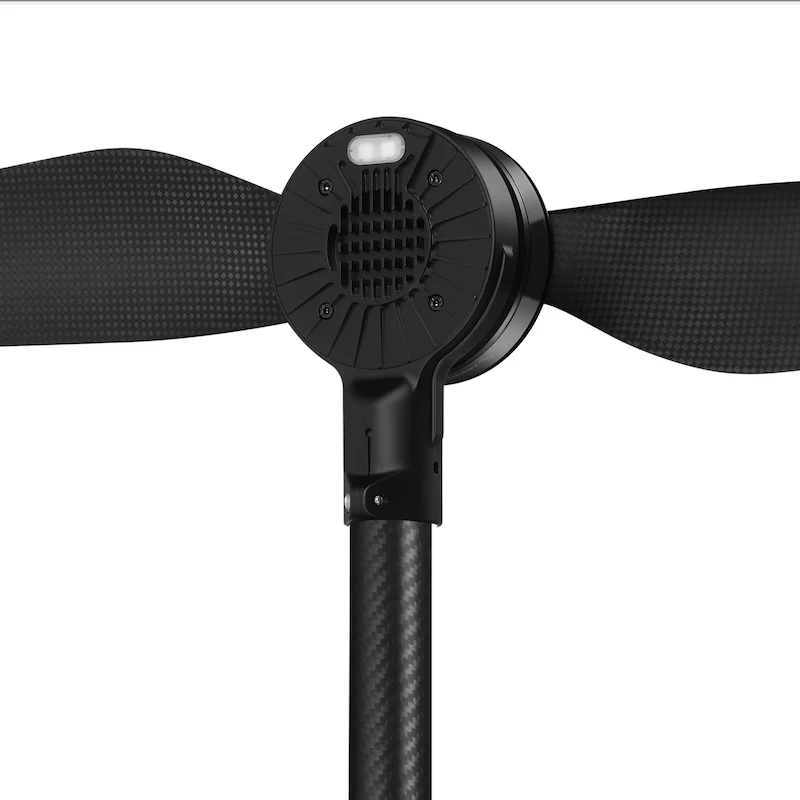

XRotor H8M (Integrated Propulsion System)
The HOBBYWING H8M 8108 85KV brushless power system is an industrial-grade solution designed for single-axis loads ranging from 2.5 to 3.5 kg, with a maximum pulling force of 7.4 kg. It is compatible with 30mm carbon fiber tube arms and boasts an IP45 waterproof protection rating. Offering efficient heat dissipation, it serves as a versatile power solution for various applications, including small professional aerial photography, police operations, security, surveying and mapping, emergencies, and more.
The FOC ESC (Electronic Speed Controller) features CAN communication, a dual redundant design for digital and PWM throttle options, power-on self-test, fault storage, over-current protection, stall protection, and other protective functions
*Props sold separately
Specifications
| Motor Size: | Φ87*32.2mm |
| KV: | 85KV |
| Arm Tube Diameter: | 30mm |
|
Weight (without propellers) |
458g |
|
Battery: |
12S |
| Recommended Thrust: | 2.5-3.5kg/Rotor |
| Max Thrust: | 7.5kg/rotor |
| Rated power Input / Output | 260W / 229W |
| Prop: | HF 30x9.8" |
| CAN Protocol: | Yes |
Original: $209.99
-65%$209.99
$73.50More Images
