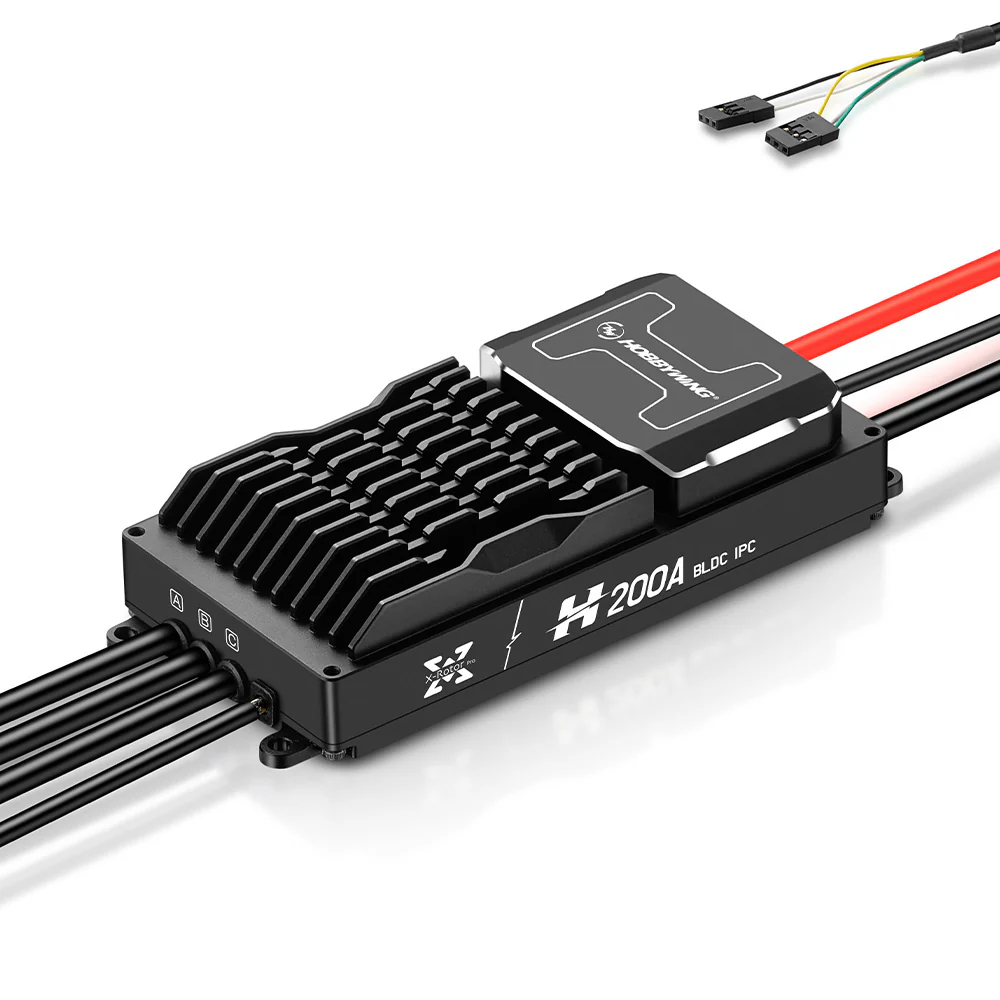

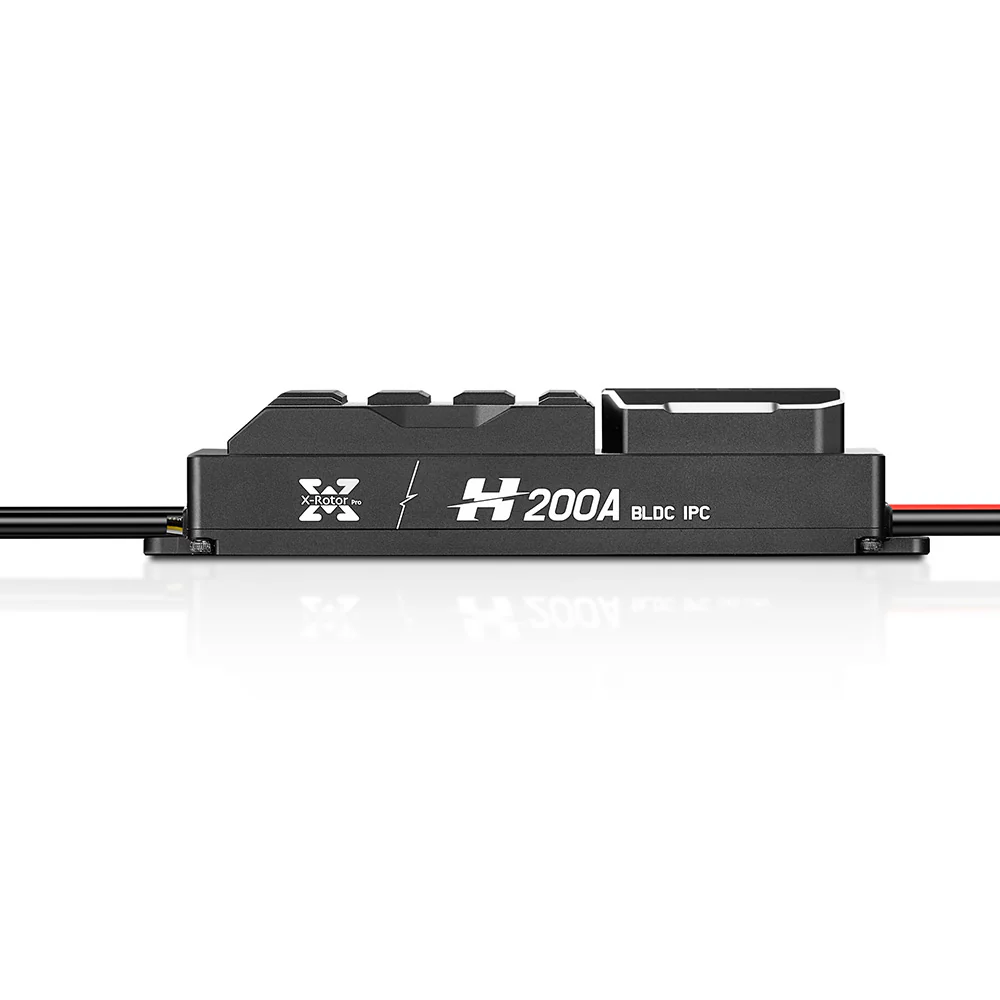

XRotor H200A IPC ESC
Learn more > Datasheet, Manual download >
| Model | XRotor Pro H200A 14S BLDC |
| Digital Throttle | Support(CAN) |
| Double Throttle Signal | (CAN+PWM) |
| Continuous Current | 80A |
| Specification | 200A |
| BEC | None |
| Voltage | 6-14S(18-63V) |
| Weight without Wires | 270g |
| Size | 116 x 56 x 31.5(mm) |
| Operating Pulse Width | 1100-1940μS |
| IPC | YES |
Brushless ESC with BLDC drive, specialized designed for UAV drones.BLDC performs better compatibility and stability in driving. IPC (Intelligent Propeller Control) version is optional, allowing flexibly stop propellers at a preset or fixed angle. IP55 protection level (IP67 optional), dustproof and waterproof .Optimized structure design, easy to install on both multi-rotor and VTOL fixed-wing drones. Supports CAN & PWM dual throttle, better resist external electromagnetic interference. New Generation Black Box Feature, allowing millisecond-level data recording and fast data & fault analyzing.
Original: $339.99
-65%$339.99
$119.00More Images
XRotor H200A IPC ESC
Learn more > Datasheet, Manual download >
| Model | XRotor Pro H200A 14S BLDC |
| Digital Throttle | Support(CAN) |
| Double Throttle Signal | (CAN+PWM) |
| Continuous Current | 80A |
| Specification | 200A |
| BEC | None |
| Voltage | 6-14S(18-63V) |
| Weight without Wires | 270g |
| Size | 116 x 56 x 31.5(mm) |
| Operating Pulse Width | 1100-1940μS |
| IPC | YES |
Brushless ESC with BLDC drive, specialized designed for UAV drones.BLDC performs better compatibility and stability in driving. IPC (Intelligent Propeller Control) version is optional, allowing flexibly stop propellers at a preset or fixed angle. IP55 protection level (IP67 optional), dustproof and waterproof .Optimized structure design, easy to install on both multi-rotor and VTOL fixed-wing drones. Supports CAN & PWM dual throttle, better resist external electromagnetic interference. New Generation Black Box Feature, allowing millisecond-level data recording and fast data & fault analyzing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Learn more > Datasheet, Manual download >
| Model | XRotor Pro H200A 14S BLDC |
| Digital Throttle | Support(CAN) |
| Double Throttle Signal | (CAN+PWM) |
| Continuous Current | 80A |
| Specification | 200A |
| BEC | None |
| Voltage | 6-14S(18-63V) |
| Weight without Wires | 270g |
| Size | 116 x 56 x 31.5(mm) |
| Operating Pulse Width | 1100-1940μS |
| IPC | YES |
Brushless ESC with BLDC drive, specialized designed for UAV drones.BLDC performs better compatibility and stability in driving. IPC (Intelligent Propeller Control) version is optional, allowing flexibly stop propellers at a preset or fixed angle. IP55 protection level (IP67 optional), dustproof and waterproof .Optimized structure design, easy to install on both multi-rotor and VTOL fixed-wing drones. Supports CAN & PWM dual throttle, better resist external electromagnetic interference. New Generation Black Box Feature, allowing millisecond-level data recording and fast data & fault analyzing.
